超声速双翼机——一种可能的低声爆构型
中国航天空气动力技术研究院, 北京 100074
SUPERSONIC BIPLANE —— A POSSIBLE BOOMLESS CONFIGURATION
China Academy of Aerospace Aerodynamics, Beijing 100074, China
Received: 2019-12-25 Online: 2020-08-20
作者简介 About authors
白鹏,博士,研究员,博士生导师,任职中国航天空气动力技术研究院第一研究所;空气动力学学会计算流体力学专业委员会副主任委员、航空学会临近空间专业委员会委员、航空学会空气动力学分会委员、北京力学学会理事(流体力学专业委员会委员)、军科委某技术主题专家组成员、航天科技集团公司学术技术带头人、航天十一院科技委委员、《空气动力学学报》、《气动研究与实验》编委。长期从事空气动力学和新概念飞行器气动总体领域的科研工作,作为负责人和主要研究人员承担和参与国家863、973、国防基础科研、总装预研、航天核心支撑、国家重大专项工程和科技工程等纵向预研项目40余项;国家自然科学基金重点和面上、武器装备基金面上等基金类项目7项;飞行器型号气动外形优化设计和气动性能评估项目20余项;新概念飞行器总体设计项目7项。获国防科工局科技进步奖4次、中国航空学会科技进步奖1次、集团公司科技进步奖1次、航天贡献奖、航天基金奖、航天科技集团公司科技创新团队奖。获国家发明专利20余项,发表学术专著2部,译著1部,论文100余篇。
超声速双翼机的概念由德国空气动力学家阿道夫$\cdot$布兹曼于1935年提出。近年来, 面对超声速运输机低声爆、低超声速巡航阻力的需求, 超声速双翼机重新进入了航空科学家的视野。本文概述了典型超声速双翼机的工作机理, 介绍了超声速双翼机应用所面对的基本问题————非设计点特性、三维问题等的研究进展。最后对超声速双翼机下一步需要重点研究的问题及其应用前景进行了展望。
关键词:
The concept of the supersonic biplane was proposed by Adolf Busemann, a German aerodynamist, in 1935. In recent years, the supersonic biplane has re-attracted the aeronautical scientist's interest in order to meet the needs of supersonic transport's low sonic boom and low supersonic cruise drag. In this paper, the working mechanism of the typical supersonic biplane is summarized. The basic problems faced by the application of the supersonic biplane, such as non-design point characteristics and three-dimensional problems, are introduced. Finally, the key problems and the application prospects of the supersonic biplane in the future are prospected.
Keywords:
本文引用格式
刘荣健, 白鹏.
LIU Rongjian, BAI Peng.

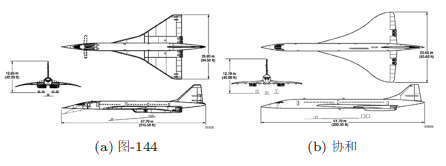

自1947年10月14日耶格尔驾驶贝尔X-1突破音障, 实现第一次载人超声速飞行以来, 超声速飞行技术已经取得了巨大成就。A-12/SR-71成为第一种以马赫数3巡航飞行的实用飞行器。2004年11月16日, X-43A试验飞行器首次实现了约马赫数10的吸气式巡航飞行, 标志着吸气式高超声速飞行取得了重大进展。相比航天和军用航空领域, 民用航空领域的超声速飞行一直处于进展缓慢的状态, 两种实用的超声速客机图-144和协和在短暂的辉煌之后已经退出了历史舞台(图1, 图2)。究其原因就是当前超声速飞机很差的燃油效率导致的高运营成本以及超声速飞行所带来的声爆两大问题没有得到解决。而这两个问题背后的主要因素都是超声速飞行时产生的强激波。如何减弱超声速巡航飞行时的激波一直是空气动力学家的努力方向。
图1
图2
1935年, 在罗马召开的第五届雅尔塔会议上, 普朗特的弟子, 德国空气动力学家布兹曼(Busemann)[1]首次提出了超声速双翼机的概念(图3)。其基本思想为利用平行放置的两个机翼产生的波系对消, 达到减弱或完全消除超声速飞行时产生的强激波, 进而大幅减小激波阻力的目的。由于当时人类尚未实现超声速飞行, 因此该论文没有得到太多关注。在超声速飞行的早期, 一些著名空气动力学家对这一概念进行了初步的理论研究和实验验证。由于超声速双翼机构型具有更小的阻力、更弱的声爆, 进而具有更好的经济性和环境友好性, 因此有望成为未来超声速运输机的可用形式。近年来, 随着人们对超声速商业飞行的热切期盼, 这一概念重新回到空气动力学家和航空工程师的视野中。纵观历史,超声速双翼机的研究历程可大致分为三个阶段:
第一阶段:1930s, 概念提出阶段, 布兹曼在理论研究的基础上提出了布兹曼双翼机的概念, 但未获太多关注。

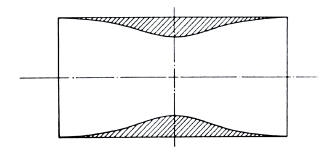

图3
1 超声速双翼机的原理
1.1 激波减弱效应
根据超声速线化理论, 无黏、小攻角情况下平板翼型的升力和阻力系数可写为
式中$\alpha $为攻角, $M_\infty $为来流马赫数。

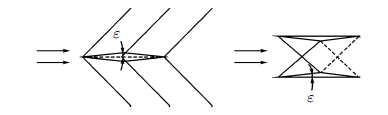

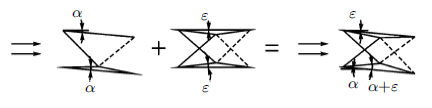

考察由两个平板翼组成的双翼构型, 忽略两个平板翼之间的干扰, 如图4所示。由式(1)和式(2)易得:与单翼构型升力相等时, 双翼构型的攻角为单翼构型的1/2。进而, 双翼构型的阻力系数为单翼构型的1/2(平板相对厚度为零, 即由厚度导致的波阻忽略不计)。即, 产生相同升力的情况下, 双翼构型比单翼构型产生的激波大幅减弱了, 进而减小了升致波阻。
图4
1.2 激波消除效应
超声速双翼机真正的意义在于显著减小甚至消除由厚度产生的波阻。如图5所示, 将传统的超声速菱形单翼从弦线分为相同的两半, 再翻转对称放置, 便形成了典型的布兹曼双翼构型。通过调节上下翼面的相对位置, 使前缘产生的激波刚好打到另一侧机翼的肩点上, 并与该处产生的膨胀波干涉, 从而减弱(消除)激波。理论上, 在设计马赫数下可以完全消除激波, 而由厚度(容积)导致的波阻为零。
图5
1.3 布兹曼双翼机的发展————利歇尔双翼机
利歇尔双翼同时应用了平板双翼的激波减弱效应和布兹曼双翼的激波消除效应, 研究结果表明, 其波阻力为相同升力下平板翼型的2/3。
图6
2 超声速双翼机基本问题研究进展
2.1 非设计点特性

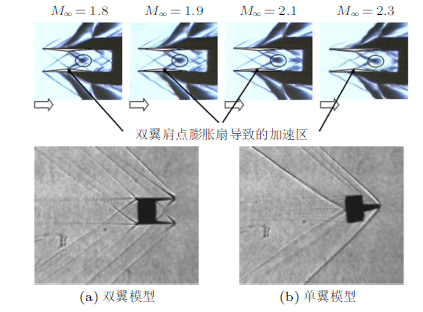

图7
图8
图9

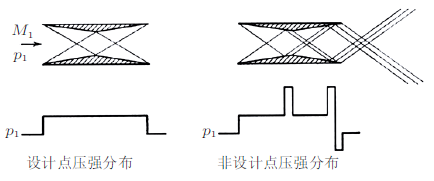

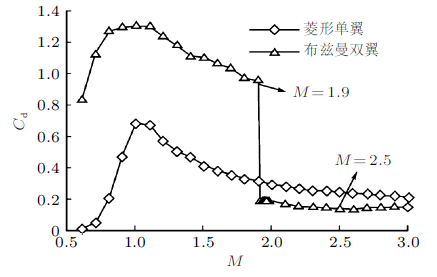

与超声速进气道类似, 超声速双翼构型减速过程的流场往往与加速过程不重合, 存在迟滞现象, 如图10所示。
图10

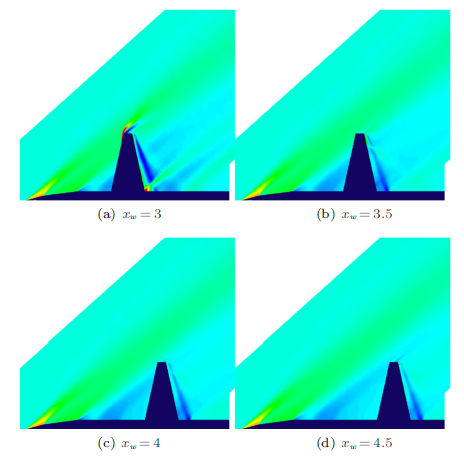

图11
图12
图13
图14
图15
2.2 三维问题

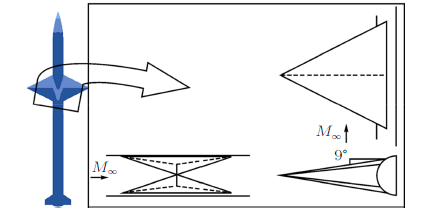

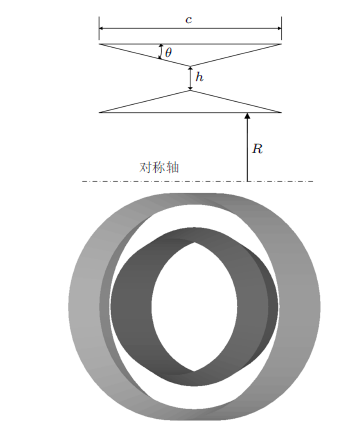

图16
图17
图18
图19
3 超声速双翼机的工程应用
由于超声速双翼构型具有更小的阻力、更弱的声爆, 进而具有更好的经济性和环境友好性,因此有望成为未来超声速运输机的可用形式。在超声速双翼机从原理向工程转化方面, 日本和美国走在了前列。

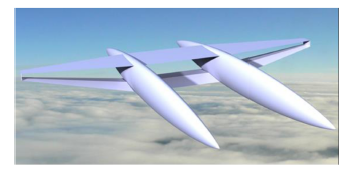

图20
2008年, 日本东北大学的楠瀬课题组提出了基于超声速双翼构型的超声速旅客机方案。如图21所示, 整机采用超声速双翼飞翼布局, 四台发动机融合在双翼结构中。客舱在机体顶部, 与机翼融为一体, 双垂尾保证超声速飞行时的稳定性。该方案可将当前东京到纽约的飞行时间减少一半。
图21
图22
图23
通过以上叙述可知, 尽管当前一些研究机构已经开展了超声速双翼机的工程应用研究, 但方案大多停留在纸面上, 概念从理论走向工程实际还有很长的路要走。
4 展望
图24

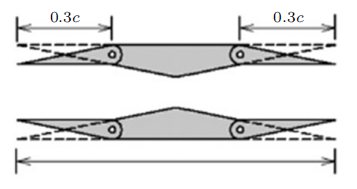

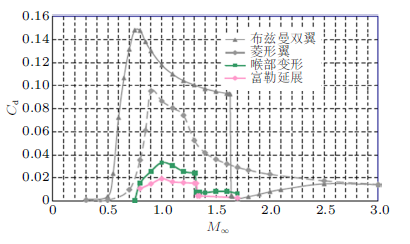

当前的文献资料中, 还没有对超声速双翼机飞行力学特性以及飞行控制问题研究的报道, 对于工程实用化的飞行器, 飞行力学和飞行控制乃是重中之重, 尤其加速/减速等变模态飞行时的动力学特性与控制问题, 这些也应当是下一步研究工作的重点。楠瀬等在研究中发现, 从亚声速到超声速, 布兹曼双翼的气动中心(焦点)并不像传统机翼一样由约25%移动到约50%弦长, 而是一直维持在25%$\sim$ 27%之间, 预示了良好的操稳特性[14]。除加减速外, 一些常见的机动过程, 如滚转、偏航过程中双翼机构型性能的鲁棒性也是亟待研究的。当前研究结果表明, 壅塞、迟滞等现象可以通过诸如采用前后缘襟翼、机翼变形、前后错动等方式解决。从工程角度来看, 前后缘襟翼方案最为实用, 且前后缘襟翼在起降阶段可以较好地改善飞行器的低速性能。当前研究中, 主要关注超声速双翼构型的超声速性能, 而真实的飞行器需要经历从速度零、高度零加速、爬升至巡航高度进行超声速巡航, 以及减速、下降、着陆等整个历程。研究表明, 目前的超声速双翼构型的低速失速迎角在20度左右, 下一步的研究中需要综合优化包括低速起降、爬升、超声速巡航等各阶段的性能。
对于吸气式超声速巡航飞行器, 其进气道与机体一体化设计也应该为研究重点, 好的一体化设计能在提高气动性能的同时减轻结构重量, 提高有效载荷。当前的文献中还未见相关研究报道。已有方案中,日本东北大学的超声速旅客机进气道设计方案较为理想。
当前公开的文献报道中, 研究重点主要集中于超声速双翼机的超声速减阻问题。然而,当前的研究结果表明, 采用超声速双翼机原理的飞行器虽然波阻较低, 升阻比较高, 但其升力系数普遍偏低, 提高可用升力系数是下一步研究的重点。由于激波的消除效应, 超声速双翼机表现出了优异的低声爆特性, 但当前研究大多集中于满足气动性能后的声爆评估, 对于控制声爆的主动设计报道较少。值得一提的是, 研究人员发现, 双翼构型可以通过合理设置, 将激波反射至天空, 从而减小向地面传播的激波强度, 进而大幅减弱声爆[6], 如图25所示,但代价是降低了升力。因此需要综合考虑升力、阻力、声爆等因素进行设计折中。另外, 双翼的采用大幅增加了飞行器的浸润面积, 在降低波阻的同时增加了摩擦阻力, 需要对各种阻力进行综合优化, 以实现总阻力最低。
图25
对于新概念飞行器来说, 进行缩比模型飞行试验是综合研究气动性能、飞控特性、降低研制风险的重要手段, 工程化过程中可建造缩比超声速双翼机进行模型试飞验证。此外, 超声速双翼机是尖前缘飞行器, 对于长时间巡航飞行, 需要考虑其前缘热防护问题。
总体来说, 超声速双翼机构型已被研究证实为一种有潜力的低波阻、低声爆构型, 有望成为未来超声速巡航飞机的实用构型。但当前的研究主要集中在理论、概念阶段, 工程化还有很长的路要走。虽然存在很多问题, 许多工作亟待开展, 超声速双翼机概念仍然给人们带来了超声速飞行的新希望, 是一种可能出现在未来天空中的低波阻、低声爆构型。
